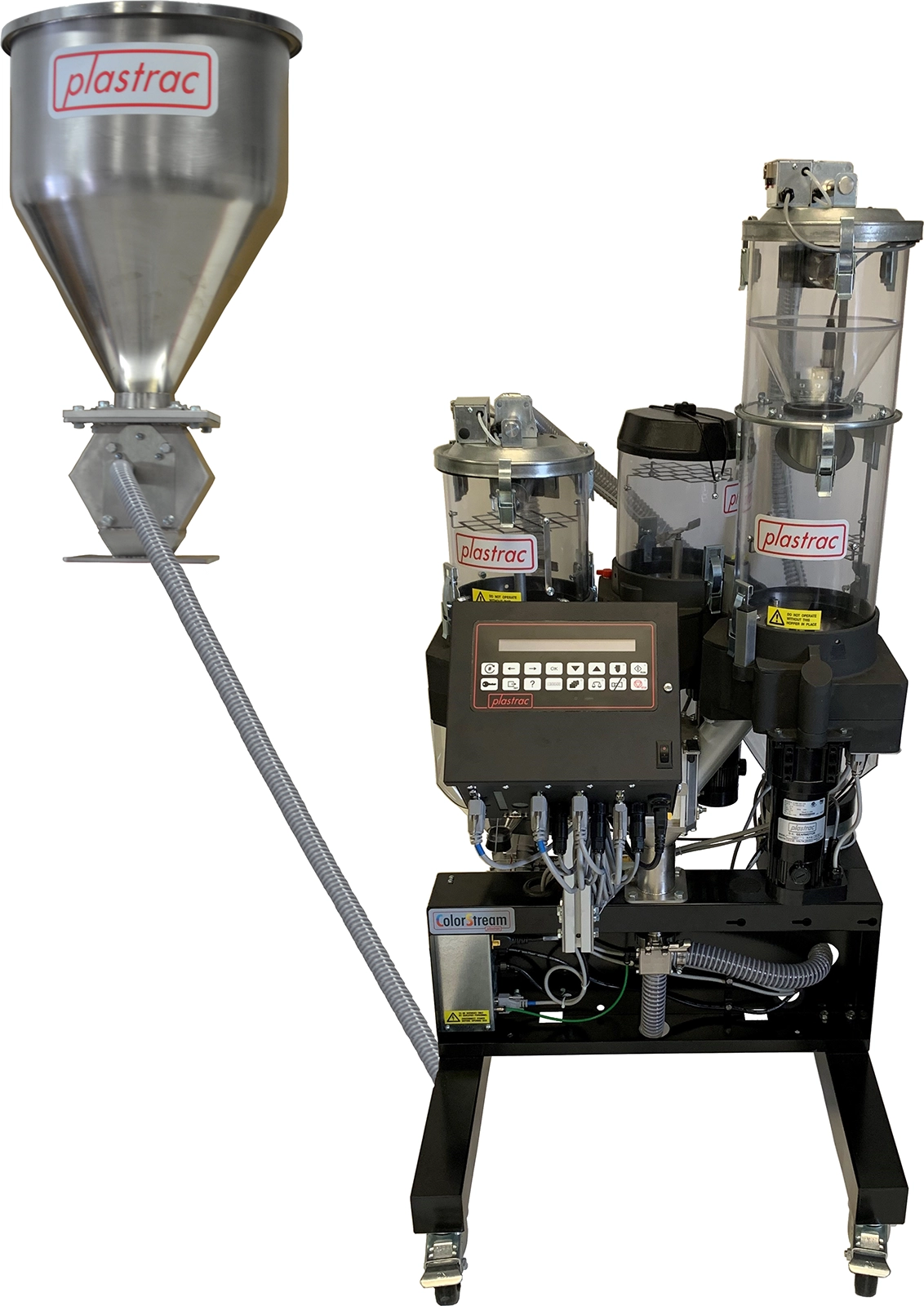

Gravimetric ColorStream Series with a hopper against a white background.

Gravimetric ColorStream™ Series. The ColorStream™ Model CS-504

The Blending Revolution:

  • All blending moved to the plant floor
  • Increases Safety
  • Slashes Capital Equipment Costs
  • Saves Big on Time, Energy and Labor
  • Quick and Easy Color Change

Modular 4 Component Gravimetric ColorStream Blender
One Flood Fed Natural Resin
3 Metered Ingredient

PDF Check out our brochure!
Contact Us

Description

  • Applications: Injection Molding, Injection Blow Molding, Extrusion or PET applications
  • Components: Four, One Flood-Fed Natural, Three Metered Ingredient
  • Capacity: 1/3 HP Blower: 80 lbs Per Hour (36 kg Per Hour), 3/4 HP Blower: 250 lbs Per Hour (113 kg Per Hour)
  • Sturdy mixer mounted to machine throat to support central loading system for flood-fed natural resin and cyclone receiver to blend additives with natural resin
  • 1/3 or 3/4 HP Regenerative Blower to transport additives using clean transport air to mixer mounted on throat of molding machine
  • Small or large mixer to handle low and high throughputs of additives
  • Caster wheels allow blender to be moved to different machines
  • Feeder handles all pellet types (including micropellets)
  • Recovery Time Tracking and Timer Mode synchronizes the unit with your Molding Machine
  • Prefeed feature to adjust for transport time of additives to mixer
  • Integrated weigh scale system with push-button calibration for additive feeder
  • Material low level sensor with audible alarm
  • Rugged clear additive hoppers
  • Removable top housing for quick and easy material changeover
  • Control box with an easy to read 80 character LCD display, operates up to 4 components w/ loaders
  • Microprocessor stores up to 250 recipes that can be edited and loaded by computer
  • Event History feature records the last 76 events over 72 hours
